Custom SQL

A detailed description of the “Custom SQL” filter rule can be found on the filter rule detail page — quick information is also available via the help in the settings.

A reminder: even with the “Custom SQL” filter rule, only IDs are passed to the next filter rule or filter set. No “attribute values” can be added or computed, even though SQL would allow that via JOINs or mathematical expressions.

The following SQL queries serve as “ingredients” for your own “SQL menu”:

“LIKE” query with default value

“Search items where attribute ‘name’ matches GET parameter ‘name’, or return all items (no filtering) if not set.”

SELECT `id`
FROM {{table}}
WHERE `name` LIKE (CONCAT('%',{{param::get?name=name&default=%%}},'%'))

Filter by date

“Search items where attribute ‘date_start’ is greater than or equal to today’s date — i.e. in the future.”

SELECT `id`
FROM {{table}}
WHERE FROM_UNIXTIME(`date_start`) >= CURDATE()

or

SELECT `id`
FROM {{table}}
WHERE DATE(FROM_UNIXTIME(`date_start`)) >= DATE(now())

Filter by date (start or “ongoing”)

“Search items where attribute ‘date_start’ is greater than or equal to today’s date — i.e. in the future — or items where the current date is between ‘date_start’ and ‘date_end’ (ongoing).”

SELECT `id`
FROM {{table}}
WHERE
( DATE(FROM_UNIXTIME(`date_start`)) >= DATE(NOW()) )
OR
( DATE(FROM_UNIXTIME(`date_start`)) <= DATE(NOW())
  AND
  DATE(FROM_UNIXTIME(`date_end`)) >= DATE(NOW())
)

Filter by date (start/stop)

“Search items where attribute ‘start’ is greater than the current Unix timestamp and attribute ‘stop’ has not been reached yet. Empty attribute values are treated as irrelevant (then only ‘start’ or ‘stop’ applies).” [by “Cyberlussi”]

SELECT `id`
FROM {{table}}
WHERE (`date_start` IS NULL OR `date_start` = '' OR `date_start` < UNIX_TIMESTAMP())
AND (`date_stop` IS NULL OR `date_stop` = '' OR `date_stop` > UNIX_TIMESTAMP())

Alternative

SELECT `id` FROM {{table}}
WHERE (`date_start` IS NULL OR DATE(FROM_UNIXTIME(`date_start`)) <= DATE(now()))
AND (`date_stop` IS NULL OR DATE(FROM_UNIXTIME(`date_stop`)) >= DATE(now()))

Filter by date (start) and publish date with GET check

For example for events that should be hidden after their start date is reached, but should only be shown from a certain date onwards — if set.

For testing, a GET parameter can be appended to the URL in the frontend — date format is “YYYY-MM-DD”, e.g. “domain.tld/my-list.html?now=2023-07-10”.

SELECT id FROM {{table}}
WHERE DATE(FROM_UNIXTIME(`date_start`)) >= DATE(now())
AND (`date_published` IS NULL
     OR DATE(FROM_UNIXTIME(`date_published`)) <= DATE(now())
     OR DATE(FROM_UNIXTIME(`date_published`)) <= {{param::get?name=now}}
)

Filter by date (start) last 12 months

Archive filter for past items within the last 12 months:

SELECT id FROM {{table}}
WHERE DATE(FROM_UNIXTIME(`date_start`)) < DATE(now())
AND DATE(FROM_UNIXTIME(`date_start`)) >= DATE(now() - INTERVAL 12 month)

Filter by child elements of a parent element

“Find all child elements for a given parent element via the alias parameter — e.g. to output all associated ‘child elements’ on a detail page.”

SELECT `id`
FROM mm_child
WHERE `pid` = (
  SELECT `id`
  FROM mm_parent
  WHERE
  `parent_alias` = {{param::get?name=auto_item}}
  LIMIT 1
)

Filter by parent element of a child element

“Find the parent element for a given child element via the alias parameter — e.g. to output the associated ‘parent element’ on a detail page.”

SELECT `id`
FROM mm_parent
WHERE `id` = (
  SELECT `pid`
  FROM mm_child
  WHERE
  `child_alias` = {{param::get?name=auto_item}}
  LIMIT 1
)

or shorter

SELECT `pid` as id
FROM mm_child
WHERE `child_alias` = {{param::get?name=auto_item}}

Sorting output by more than one attribute (fixed)

“Sort ‘teams’ by points descending + games ascending + priority descending.” See also Forum

Note that this SQL rule is placed as the first rule in the filter. In the first rule — if it returns a list of items — the “base set” and the order of items is determined, and subsequent rules can only reduce this set. The sort direction in MySQL is always ASC by default — for a different direction, specify it for each sort column.

SELECT `id`
FROM mm_teams
ORDER BY `points` DESC, `games` ASC, `prio` DESC

Sorting output by a number and NULL values or random

Note that this SQL rule is placed as the first rule in the filter. Display items by a custom sort number, with all items without a number (NULL) at the end:

SELECT `id`
FROM mm_sv_categories
ORDER BY ISNULL(`sort_number`), `sort_number` ASC

You can also display certain items first (attribute “prio_slider” = 1) and the rest in random order:

SELECT `id`
FROM mm_sv_trainings
ORDER BY `prio_slider` DESC, rand()

Sorting output by referenced MetaModel and name

For example, if you have a MetaModel for products where each product references a partner via single select [select], and you want to output the products sorted first by the partner’s manual sorting (sorting) and then by the actual product name, this can be achieved with the following code:

SELECT pro.id FROM mm_products AS pro
LEFT JOIN mm_partners AS part ON pro.partner = part.id
WHERE pro.published = 1
ORDER BY part.sorting, pro.product_code

In the output list, this could be used to output an intermediate heading for each new partner. Store the current partner ID in a temporary variable and check for equality on each loop pass — if not equal, output “partner name”.

Dynamic default value

In custom SQL, default values are possible via ‘default=<value>’, which are used when the filter parameter is not set. Currently, nesting of insert tags or use of MySQL functions is not possible within the param tag, so dynamic defaults require a workaround using “SQL IF”. See also GitHub #880

SELECT `id` FROM mm_months
WHERE FROM_UNIXTIME(`from_date`) <= IF(
   {{param::get?name=von_datum}},
   {{param::get?name=von_datum}},
   CURDATE()
)
ORDER BY `from_date` DESC

Default value ‘’

In custom SQL, default values are possible via ‘default=<value>’, which are used when the filter parameter is not set. Currently, entering ‘’ or “” in the param tag is cast in a way that causes incorrect filtering; this applies for example to checkbox values.

SELECT `id` FROM mm_employees
WHERE `driver_licence` = IF(
   {{param::get?name=driver_licence}},
   {{param::get?name=driver_licence}},
   ''
)

Passing multiple values for IN()

Multiple values can be passed to the query as a comma-separated list or array — depending on the type of the input, the aggregate parameter uses the value list or set.

-- as list
-- domain.tld/en/list?id=13,15,19
SELECT id FROM {{table}}
WHERE id IN ({{param::get?name=id&aggregate=list}})

-- as array
-- domain.tld/en/list?id[]=13&id[]=15&id[]=19
SELECT id FROM {{table}}
WHERE id IN ({{param::get?name=id&aggregate=set}})

Filter tags for an item

Employees have a multi-select [tags] attribute linked to the MetaModel “Softskills”. For the detail view of an employee, these should be retrieved — the detail view is filtered via the “auto_item” using the alias.

The softskills are displayed as a separate list on the detail page, but must be filtered accordingly. To retrieve the data, the relation table “tl_metamodel_tag_relation” must be used. Important: determine the attribute ID for “rel.att_id”, i.e. in the “Employees” attributes, the multi-select has e.g. ID 5 (find it via the info button).

SELECT DISTINCT(rel.value_id) as id FROM mm_employees as ma
LEFT JOIN tl_metamodel_tag_relation rel ON (ma.id = rel.item_id AND rel.att_id=5)
WHERE
ma.alias = {{param::get?name=auto_item}}

Filter items by single select property

Employees have a single select [select] attribute linked to the MetaModel “Department”. For a list view of employees, only those working in a department with a “score” greater than 99 should be shown.

SELECT `id` FROM mm_employees
WHERE `department` IN (
   SELECT `id` FROM mm_departments
   WHERE `score` > 99
)

or

SELECT ma.id FROM mm_employees ma
LEFT JOIN mm_departments rel ON (ma.department = rel.id)
WHERE rel.score > 99

Filter employees for a page assigned via multi-select [tags]

Employees have a multi-select attribute linked to the tl_page table, to represent an employee as responsible on specific pages. On those pages, an MM list element can be inserted that outputs the associated employees. The following query can be used for filtering:

SELECT ma.id FROM mm_employees ma
LEFT JOIN tl_metamodel_tag_relation rel ON (ma.id = rel.item_id)
WHERE
rel.att_id = 79 AND             -- 79 ID of the [tags] attribute
rel.value_id = {{page::id}} AND -- variable page ID
ma.published = 1
ORDER BY ma.name

Filtering a select in the BE for a non-MM table

If the single select [select] attribute is configured with a table that is not an MM table, a “WHERE restriction” input is available as filtering option. For example, if you want a connection to the member table “tl_member” but restrict it so that each member can only be selected once, use the following:

(SELECT tl_member.id FROM tl_member
 LEFT JOIN mm_member
        ON mm_member.memberId=tl_member.id
   WHERE
         mm_member.memberId IS NULL
   AND
         tl_member.id=sourceTable.id)

Extracting an ID from a GET parameter after ‘::’

For filtering in the backend or for frontend editing, you may need access to the ID from the GET parameter in the URL. However, it is coupled with a table name via ‘::’ and must be separated for use in a custom SQL query. This can be done using SUBSTRING_INDEX in the query, as shown in the following example:

-- URL: ....&id=mm_employees::51&...
SELECT * FROM mm_employees
WHERE `id` = SUBSTRING_INDEX({{param::get?name=id}},'::',-1)

Filter for select/tags in the input mask

The single and multi-select attributes (Select and Tags) can be given a filter for the input mask. If this filter should dynamically respond to another attribute in the input mask, the “Custom SQL” filter rule can be used with dynamic parameters.

As a dynamic parameter, for example the URL with GET parameters, or the POST parameters from a submitonchange of an attribute in the input mask, can be evaluated. With GET you start with the record ID, with POST you start with the value(s) of the triggering attribute.

For example, when the department is selected, the list of selectable employees should be restricted to those who belong to the same department. The POST parameter of the department is “listened to”, and then the employee list can be narrowed down via QUERY-P (POST) or QUERY-G (GET).

SELECT `id` FROM mm_employees
WHERE IF (
      {{param::post?name=department}} != 'NULL', (QUERY-P), (QUERY-G)
 )

You can also make two select dropdowns dependent on each other. If you have a table for categories mm_market_category and a child table with subcategories mm_market_subcategory, as well as a table mm_market_machine where both tables are included as single selects: when a category is selected in the machine input mask, only the associated subcategory elements should appear. The following SQL filter rule should be added in the subcategory model:

SELECT subcategory.id FROM mm_market_subcategory AS subcategory
WHERE IF (
    {{param::post?name=category}} != 'NULL',
    subcategory.pid = (
        SELECT category.id FROM mm_market_category AS category
        WHERE category.alias = {{param::post?name=category}}
        LIMIT 1
    ),
    subcategory.pid = (
        SELECT machine.category
        FROM mm_market_machine AS machine
        WHERE machine.id = SUBSTRING_INDEX({{param::get?name=id}},'::',-1)
        LIMIT 1
    )
)

For restricting a multi-select, some trickery is needed, as the IF condition in subqueries does not allow multiple return values. However, it is possible to use GROUP_CONCAT to create a single string of IDs that can be evaluated by IN.

For example, the possible selections for attribute “travel modules” should be restricted to the selection of attribute “travel destinations”. The following template is intended as inspiration — there may be more elegant solutions.

SELECT rb.id FROM mm_travel_modules AS rb
WHERE rb.region IN (
    SELECT IF(
        {{param::post?name=travel_destinations}} != 'NULL',
        (SELECT GROUP_CONCAT(rz.id) FROM mm_travel_destinations AS rz
            WHERE rz.alias IN ({{param::post?name=travel_destinations}}) GROUP BY rz.pid),
        (SELECT GROUP_CONCAT(rel.value_id) AS id FROM tl_metamodel_tag_relation AS rel
            WHERE rel.att_id = '42'
            AND rel.item_id = SUBSTRING_INDEX({{param::get?name=id}},'::',-1) GROUP BY rel.att_id)
    ) as id
)

Filter for multi-select in the input mask: only unselected items

For example, if you have a table for regions with a multi-select attribute linked to countries, and you want to restrict the selection to countries not yet assigned, you can activate a filter on the multi-select attribute (ID: 42) for countries. In the filter, a “Custom SQL” filter rule can be set up as follows:

SELECT `id`
FROM mm_countries
WHERE `id` NOT IN (
    SELECT `value_id` as id
    FROM tl_metamodel_tag_relation
    WHERE `att_id` = '42'
) OR id IN (
    SELECT `value_id` as id
    FROM tl_metamodel_tag_relation
    WHERE `att_id` = '42'
    AND `item_id` = SUBSTRING_INDEX({{param::get?name=id}},'::',-1)
)

Distinguishing between frontend and backend

Note

In MM 2.3, a selection was added to the filter rule to specify the execution environment, e.g. “Backend only”. This allows the SQL queries to be simplified.

When filtering with custom SQL, it may be necessary to distinguish between frontend and backend. Since MM 2.2, filters configured for Select and Tags attributes are also applied in the frontend, which can cause issues with filter rules intended only for the input mask.

You can query the current request string and search for your model name, e.g. “mm_employees”, as the first word.

SELECT artd.id FROM mm_article_details artd
LEFT JOIN tl_metamodel_tag_relation rel ON (artd.id = rel.item_id)
WHERE
IF (SUBSTRING_INDEX(SUBSTRING_INDEX('{{env::request}}', '/', -1), '?', 1) = 'mm_employees',
   rel.att_id = 43 AND                                             -- 43 ID of the [tags] attribute
   rel.value_id = SUBSTRING_INDEX({{param::get?name=id}},'::',-1), -- variable ID from URL for article/product
   1=1
)

Note

With MM version 2.3-beta1, the routing in the BE changed — instead of domain.de/contao?do=metamodel_mm_employees&act=edit... it is now domain.de/contao/metamodel/mm_employees?act=edit, meaning the query SUBSTRING_INDEX(SUBSTRING_INDEX('{{env::request}}', '/', -1), '?', 1) previously returned the value “contao”.

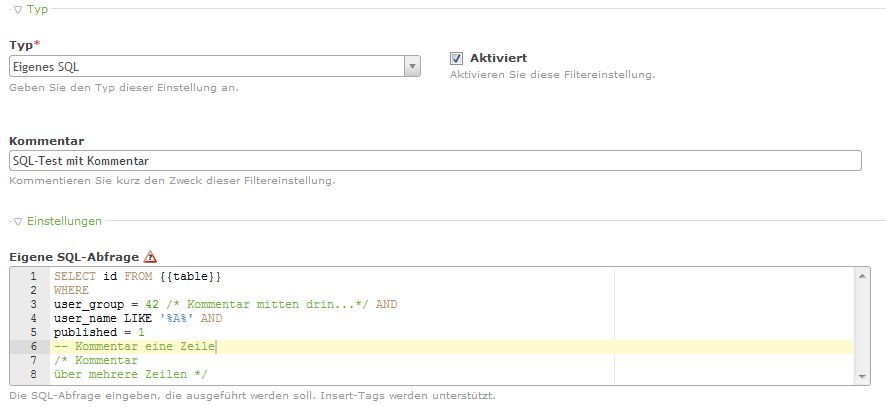

Comments in SQL queries

SQL queries can sometimes become quite complex and contain fixed values such as attribute IDs etc. To keep track later or when working in a team, comments can be added here as well — more at the MySQL reference manual.

Example:
